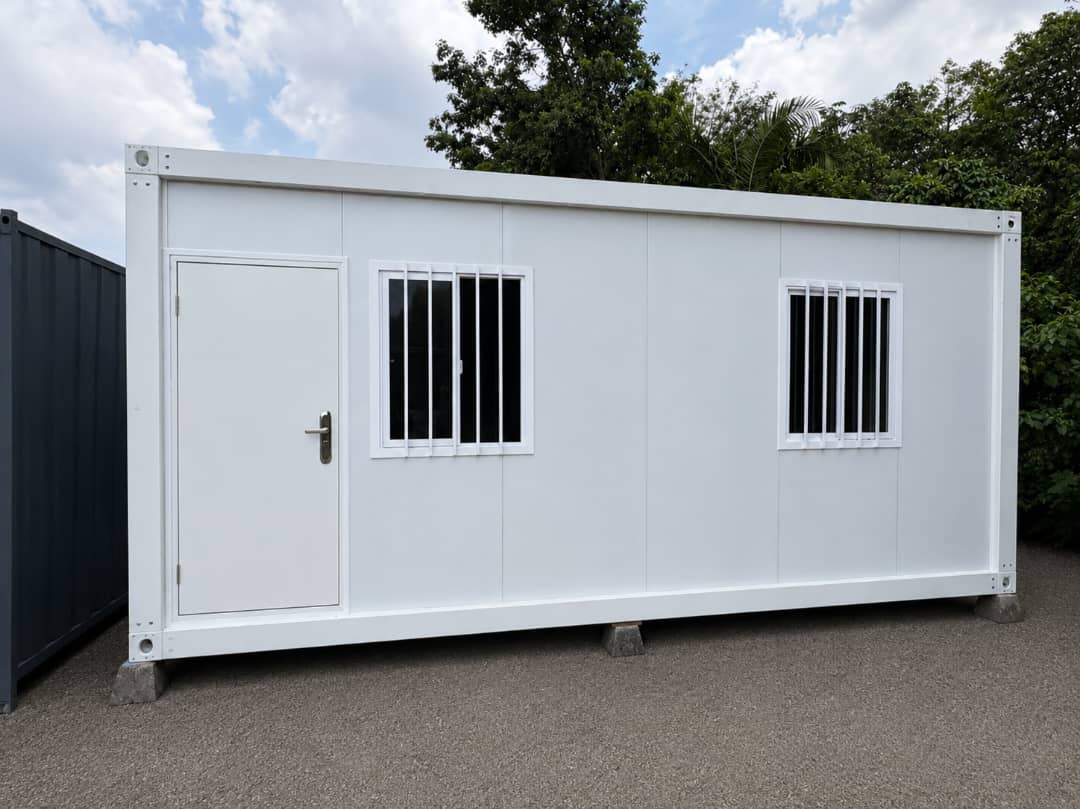

Specification of Sandwich Panel Cabin
Main StructureConstructed with all steel sections designed to be top-hoisting with primer coating
Base KidIs fully welded with steel rectangular hollow section 3" x 3" and primer coating
Column & BeamSteel square hollow section 3" x 3" with prime coating
FloorIs made of 16mm cemboard reinforced with 2" x 3" hollow section at 16" interval and top finished with vinyl sheet
RoofIs covered with high tensile 0.327mm sandwich panel (50mm polystyrene foam)
WallExternal cladding and internal wall is fixed with high tensile 0.327mm sandwich panel (50mm polystyrene foam)
DoorStandard 33"(W) x 82"(H) sandwich panel door completed with quality cylindrical lockset
Window3'(W) x 3'(H) powder coated sliding window
ElectricalIs completed with 4'0" led tube lighting and wiring switch point, 13A plug point, 15A wiring for air-conditioner, DB board C/W MCB and incoming box
SIZE OF STANDARD CABINSandwich Panel DoorSliding Window4' Light Tube13A Plug PointAir-cond. WiringSwitch PointBase Footing
20' x 10' x 8 1/2'1232116
30' x 10' x 8 1/2'1343218
40' x 10' x 8 1/2'24542210
