| Main Structure |
Constructed with all steel sections designed to be top-hoisting with primer coating |
| Base Kid |
Is fully welded with steel rectangular hollow section 1 1/2" x 2 1/2" and 1 1/2" x3" and primer coating |
| Column & Beam |
Steel square hollow section 2" x 2" with prime coating |
| Floor |
Is made of 12mm plywood reinforced with 2" x 3" hardwood timber at 18" interval and top finished with vinyl sheet |
| Roof |
Is covered with high tensile corrugated metal sheets reinforced by 2" x 3" hardwood timber and 2" x 2" hardwood timber |
| Wall |
External cladding is fixed with 0.23mm high tensile corrugated metal deck sheet, reinforced with hardwood bracing 2" x 2"
Internal finish is laid with first grade laminated plywood 3.0mm thk with timber beading and skirting |
| Door |
Standard 33"(W) x 82"(H) plywood door completed with quality cylindrical lockset |
| Window |
Naco adjustable glass louver window 2'(W) x 3'(H) completed with security bars |
| Electrical |
Is completed with 4'0" led tube lighting and wiring switch point, 13A plug point, 15A wiring for air-conditioner, DB board C/W MCB and incoming box |

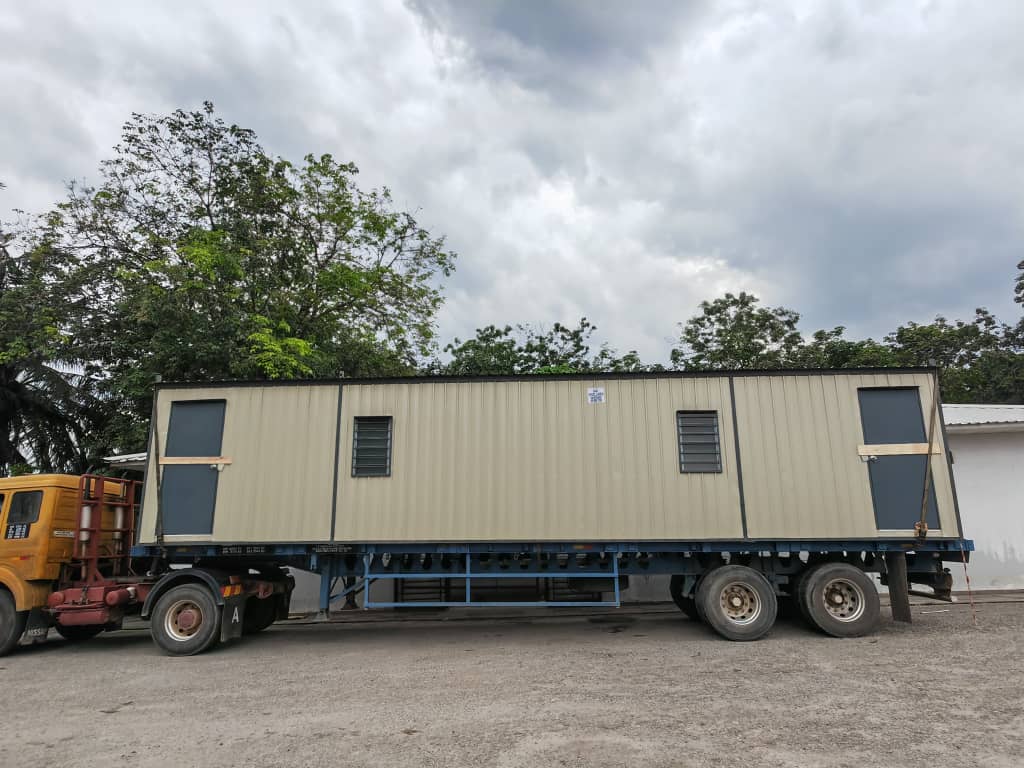

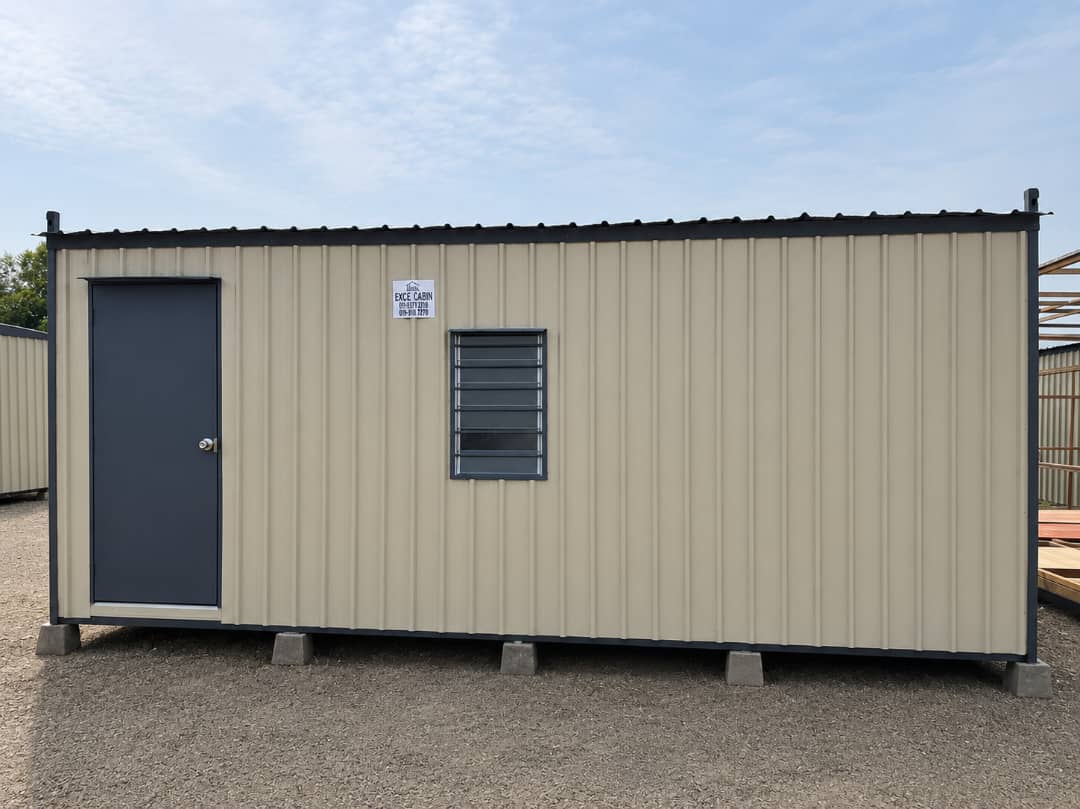

10' Portable Cabin
